Alfanar CAT 6 UTP LAN Cable – 4 Pairs × 23 AWG – Solid Copper – HDPE Insulated, PVC Jacketed

Alfanar CAT 6 UTP LAN cable with 4 pairs × 23 AWG solid copper conductors, HDPE insulation, and PVC jacket. Length: 305 meters. Verified to TIA/EIA 568-B.2 & ISO/IEC 11801 standards. Ideal for high-speed data transmission in structured cabling systems.

SKU: Alfanar CAT64UEXX

Price range: 224.25 ر.س through 672.75 ر.س *

* All Prices includes 15% Vat.
Delivery Duration: 5 Days
Add to wishlist
Add to compare
11 People watching this product now!
vendorLoc

Fast Shipping

Carrier information

vendorLoc

20k products

Payment methods

vendorLoc

24/7 Support

Unlimited help desk

vendorLoc

2-day Delivery

Track or off orders

Additional information
color

blue
length

1000feet

,

100 yards
More Offers
Sorry no more offers available

Description

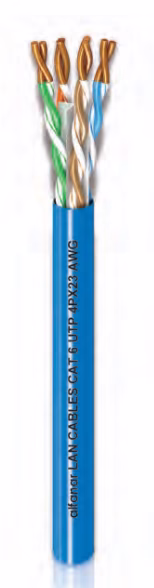

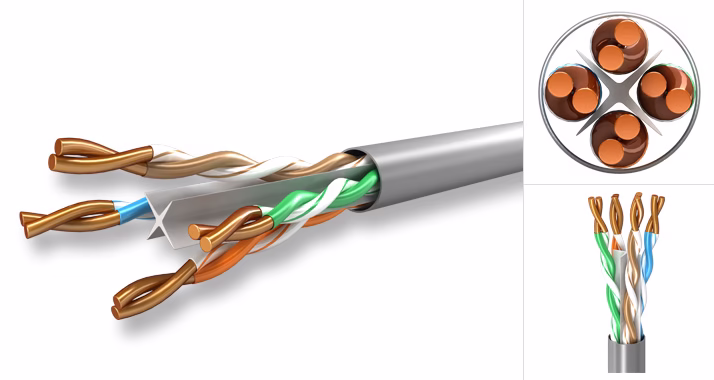

The Alfanar CAT 6 UTP 4Px23 AWG LAN cable

is a high-performance data cable made with solid copper conductors, insulated with HDPE (High-Density Polyethylene) and covered with a durable PVC jacket. This cable is engineered for reliable and stable data transmission in modern networking environments.

✅ Technical Specifications (as shown in the image):

  • Conductor Material: Solid bare copper

  • AWG Size: 23

  • Conductor Diameter (Nominal): 0.573 mm

  • Insulation Material: HDPE

  • Average Insulation Thickness: 0.203 mm

  • Min. Insulation Thickness: 0.152 mm

  • Insulated Diameter (Nominal): 1.02 mm

  • Twisting Pair Dia. (Nominal): 2.04 mm

  • Filler: Polyester

  • Jacket Material: PVC

  • Average Jacket Thickness: 0.50 mm

  • Min. Jacket Thickness: 0.40 mm

  • Outer Diameter: 6.2 mm

  • Rip Cord: Yes

✅ Packing:

305 meters (1000 ft) per pull box / spool box.

✅ Standards Compliance:

Verified to TIA/EIA 568-B.2, ISO/IEC 11801, and UL444

✅ Color Information:

  • Insulation Colors: Blue, blue/white – Orange, orange/white – Green, green/white – Brown, brown/white

  • Jacket Colors: As per customer request (commonly blue, white, or gray)

✅ Marking (on cable):

alfanar LAN Cables CAT 6 UTP 4Px23 AWG 75°C Verified to TIA/EIA 568-B.2 & ISO/IEC 11801

This LAN cable is ideal for high-speed structured cabling in residential, commercial, and data center applications. It ensures excellent performance, reduced crosstalk, and stable signal quality across long distances.
