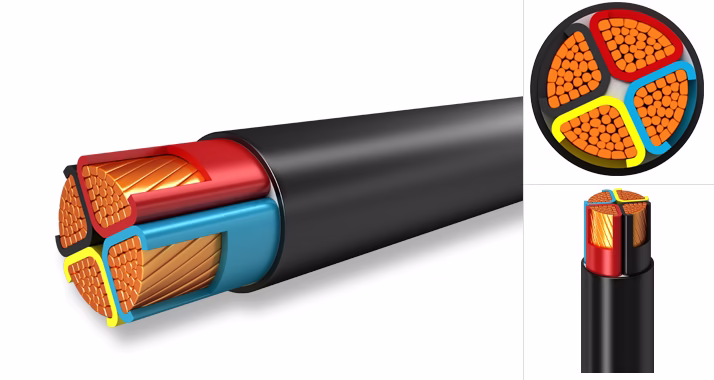

This Alfanar low voltage cable features 3 copper conductors of 35 mm² and one reduced neutral conductor of 16 mm².
The cable uses Class 2 stranded copper conductors (per IEC 60228), insulated with PVC Type A and covered with a black PVC sheath Type ST1, complying with IEC 60502-1 standards.
Designed for high reliability in demanding indoor and outdoor electrical systems.
Technical Specifications:
-
Conductor Type: Stranded copper – Class 2
-
Insulation Material: PVC Type A
-
Sheath Material: PVC Type ST1
-
Configuration: 3×35 mm² + 16 mm² (reduced neutral)
-
Outer Sheath Color: Black
-
Operating Temperature: up to 70°C
-
Short-Circuit Temperature: up to 160°C
-
Installation Methods: In conduits, trays, or direct burial
-
Cable Length: 1000 meters
-
Core Color Coding: Red, Black, Yellow, Blue
Applications:
-
Low voltage power distribution
-
Fixed wiring in industrial and commercial buildings
-
Control panels and sub-distribution boards
-
Indoor/outdoor infrastructure installations
-
Projects requiring reduced neutral configuration
🔸 Product Code: C335PA10400CB082MR
