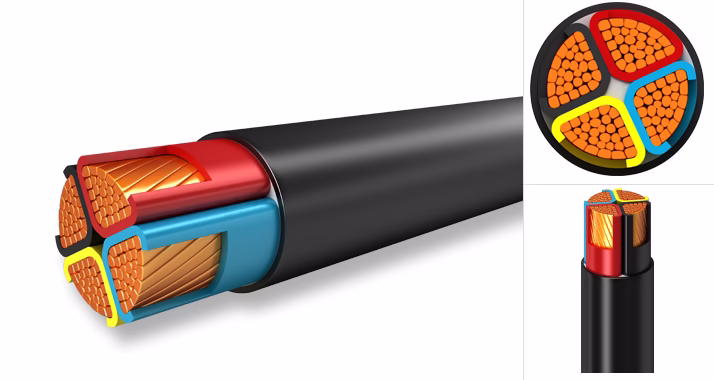

This Alfanar low voltage power cable includes 3 copper conductors of 35 mm² and a reduced neutral core of 16 mm².
The conductors are Class 2 stranded copper (per IEC 60228), insulated with PVC Type A and sheathed with PVC Type ST1.
Engineered for fixed applications requiring reliability under heat and humidity, this cable suits a variety of settings.
Technical Specifications:
-
Conductor Type: Stranded copper – Class 2
-
Insulation: PVC Type A
-
Sheath: PVC Type ST1
-
Core Configuration: 3×35 mm² + 16 mm² (reduced neutral)
-
Outer Sheath Color: Black
-
Operating Temperature: up to 70°C
-
Short-Circuit Temperature: up to 160°C
-
Installation: In conduits, cable trays, or direct burial
-
Cable Length: 500 meters
-
Core Color Coding: Red, Black, Yellow, Blue
Applications:
-
Low voltage electrical distribution systems
-
Main/sub power panels and infrastructure
-
Indoor/outdoor fixed installations
-
Residential, commercial, and industrial projects
-
Applications requiring reduced neutral core for efficiency
🔸 Product Code: C335PA10400CB082MF
