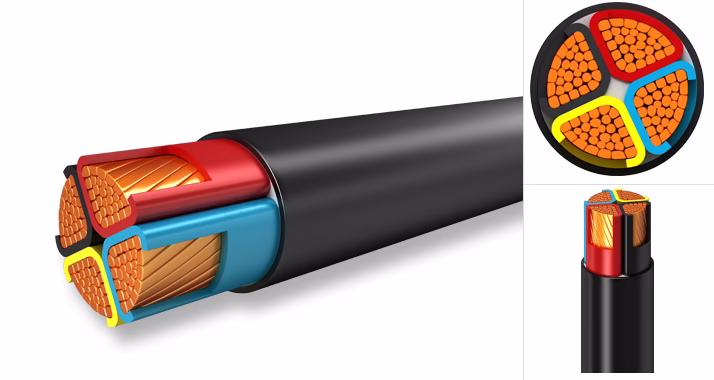

This Alfanar low voltage cable includes 3 stranded copper conductors of 35 mm² and one 16 mm² reduced neutral core.
It features XLPE insulation and a PVC outer sheath (Type ST1), compliant with IEC 60502-1 standards. The conductors are Class 2 as per IEC 60228, ensuring long-term performance in industrial and infrastructure applications.
Technical Specifications:
-
Conductor Type: Stranded copper – Class 2
-
Insulation Material: XLPE
-
Sheath Material: PVC Type ST1
-
Configuration: 3×35 mm² + 16 mm² reduced neutral
-
Sheath Color: Black
-
Operating Temperature: up to 90°C
-
Short-Circuit Temperature: up to 160°C
-
Installation Methods: Conduits, trays, or direct burial
-
Cable Length: 500 meters
-
Core Color Coding: Red, Black, Yellow, Blue
Applications:
-
Low voltage power distribution
-
Fixed installations in industrial and commercial facilities
-
Main and sub power panels
-
Outdoor and indoor wiring
-
Projects requiring reduced neutral cable configuration
🔸 Product Code: C335XA10400MB082MF
