Alfanar Low Voltage Copper Multi-core Cable, PVC Insulated and Sheathed, 4×50 mm², Black, 500m

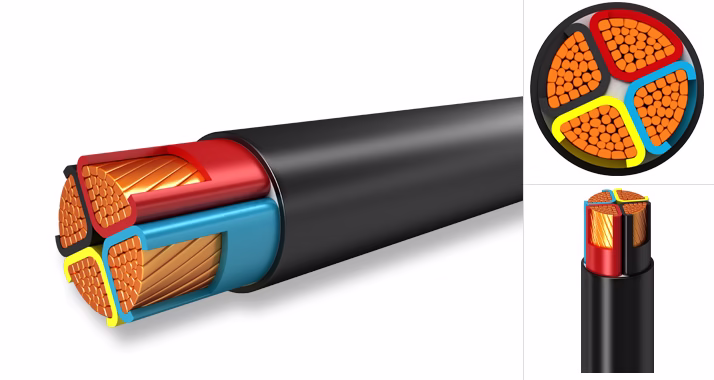

This Alfanar low voltage cable includes 4 stranded copper conductors of 50 mm², insulated with PVC Type A and sheathed in black PVC Type ST1.
Built to IEC 60502-1 standards and compliant with IEC 60228 Class 2 conductor specs, it ensures safe and efficient power transfer in fixed wiring applications.

Technical Specifications:

• Conductor Type: Stranded copper – Class 2

• Insulation: PVC Type A

• Sheath: PVC Type ST1

• Configuration: 4×50 mm²

• Operating Temperature: up to 70°C

• Short-Circuit Temperature: up to 160°C

• Sheath Color: Black

• Cable Length: 500 meters

• Core Color Coding: Red, Black, Yellow, Blue

Applications:

• Power distribution in industrial facilities

• Commercial electrical networks

• Main panel feeds

• Mid-range fixed installations

• High-current electrical circuits

🔸 Product Code: C418PA10400CB082MF
