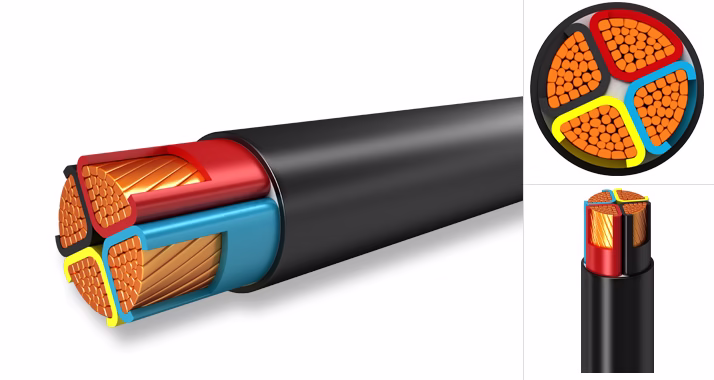

This Alfanar low voltage cable includes 4 stranded copper conductors of 185 mm² each, insulated with XLPE and sheathed in black PVC Type ST1.
Manufactured according to IEC 60502-1 and using Class 2 copper conductors per IEC 60228, this cable is engineered for extreme-duty applications with high power demands and long-term thermal stability.
Technical Specifications:
-
Conductor Type: Stranded copper – Class 2
-
Insulation: XLPE
-
Sheath: PVC Type ST1
-
Configuration: 4×185 mm²
-
Operating Temperature: up to 90°C
-
Short-Circuit Temperature: up to 160°C
-
Sheath Color: Black
-
Cable Length: 500 meters
-
Core Color Coding: Red, Black, Yellow, Blue
Applications:
-
High-capacity power grids and substations
-
Centralized distribution systems
-
Industrial energy systems
-
Long-distance electrical feeders
-
Mission-critical infrastructure projects
🔸 Product Code: C448XA10400MB082MF
