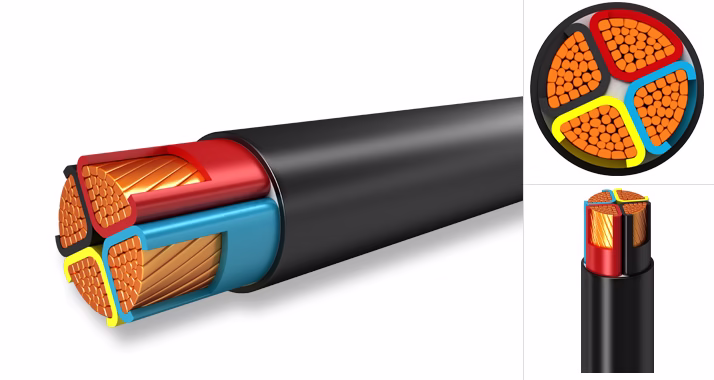

Alfanar Low Voltage Power Cable 3×150+1×70 mm² Copper XLPE/PVC Black – 500m
This Alfanar low voltage copper cable features 3×150 mm² conductors and a 70 mm² neutral or ground conductor. Designed with XLPE insulation and black PVC sheathing, it's ideal for reliable 0.6/1 kV power distribution in industrial and infrastructure projects.
355.35 ر.س *
* All Prices includes 15% Vat.
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| cores | 3 |
|---|---|
| length | 500 meter |
Description
Alfanar’s high-performance power cable includes three 150 mm² copper conductors and one 70 mm² auxiliary conductor, suitable for neutral or earth connections. Rated at 0.6/1 kV, it is insulated with cross-linked polyethylene (XLPE) for heat resistance and features a robust black PVC sheath for enhanced mechanical and environmental protection. This 500-meter roll is ideal for large-scale energy distribution networks, substation connections, and heavy-duty installations requiring durability and safety.
Technical Specifications:
-
Conductor Type: Annealed copper
-
Configuration: 3×150 mm² + 1×70 mm²
-
Voltage Rating: 0.6/1 kV
-
Insulation: XLPE
-
Outer Sheath: Black PVC
-
Length: 500 meters
-
Operating Temperature: Up to 90°C
-
Product Code: C440XA10400MB08IMF
Applications:
Ideal for low-voltage electrical distribution in factories, substations, and utility networks where a high-capacity neutral conductor is required. Suitable for both underground and fixed installations.
