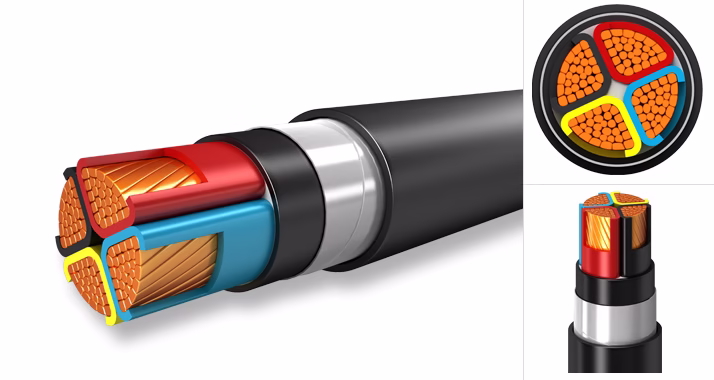

The Alfanar 3×240+120 mm² low voltage power cable is engineered for high-demand industrial environments. XLPE insulation provides superior resistance to heat and moisture, while the black PVC sheath offers environmental protection. The Steel Tape Armoring (STA) enhances mechanical strength, and the 120 mm² earth conductor ensures safety in grounded applications.
Technical Specifications:
-
Core Configuration: 3×240 mm² + 120 mm² (earth)
-
Conductor Material: Copper (CU)
-
Insulation: XLPE
-
Outer Sheath: PVC (Black)
-
Armoring Type: Steel Tape Armored (STA)
-
Rated Voltage: 0.6/1 kV
-
Cable Length: 250 meters
Applications:
Ideal for underground installations, substations, high-load power transmission, and industrial grounding systems requiring enhanced safety and mechanical integrity.
Product Code: C442XA1040GMB08IMS
