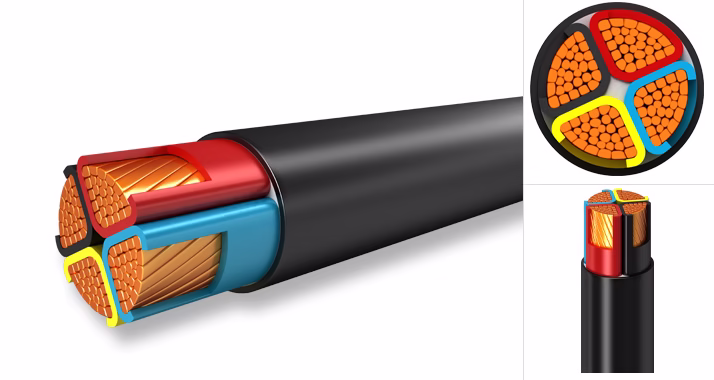

The Alfanar 3×70+35 mm² low voltage cable
is designed for high-current power distribution in industrial and infrastructure projects. Constructed with high-purity copper conductors, XLPE insulation for thermal resistance, and a tough PVC outer sheath for environmental protection.
Technical Specifications:
-
Number of Cores: 3 power cores + 1 earth
-
Conductor Size: 3×70 mm² + 35 mm²
-
Conductor Material: Copper (CU)
-
Insulation: XLPE
-
Outer Sheath: PVC
-
Voltage Rating: 0.6/1 kV
-
Length: 500 meters
-
Armoring: Not specified
Applications:
Suitable for power distribution in industrial buildings, substations, and generator connections.
Product Code: C437XA10400MB08IMF
